RANGER STOCK FLOATS PTY LTD

APACHE

***** UNBEATABLE PRICE *****

STRIPES, SCROLLS AND PIN STRIPING STANDARD

  • Hide
    Images
  • Apache
  • Apache

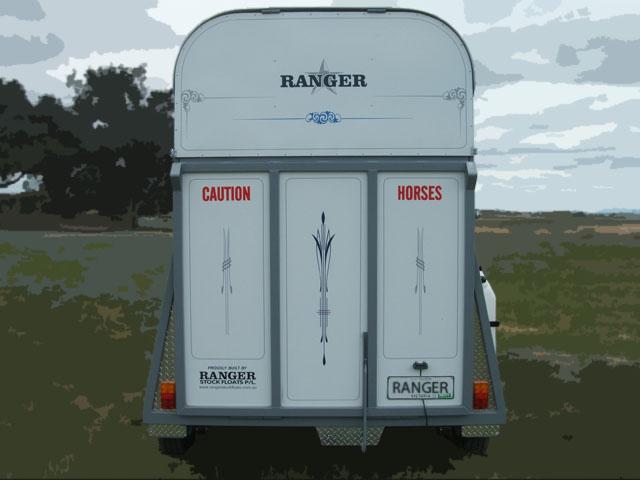

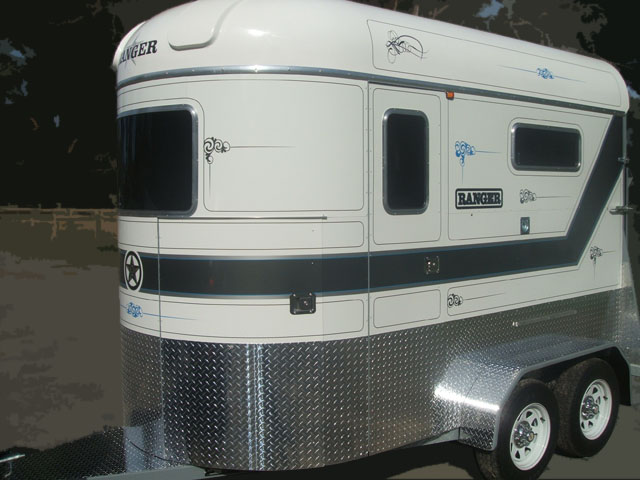

Apache

Apache


SPECIFICATIONS

INTERIOR LENGTH 12ft 8in
INTERIOR HEIGHT 7ft 3in
BAYS 6ft 8in
WEIGHT (TARE) 1200kg
WEIGHT (GVM) 2500kg

THE APACHE DELUXE FEATURES

CHASSIS in B.H.P square rolled hollow section steel with A-frame penetrating well across framing corners and back to the edge of side mainrails.  Load sharing rocker roller suspension and solid square axles.
TACK BOX huge area with two separate external access doors with two saddle racks and bridle hooks.
TWO ACCESS DOORS on gas struts open automatically.
BRAKES Electric to all four wheels and fitted with BREAK AWAY UNIT.
FINISH in “Colorbond”, combined with 2 PACK AUTOMOTIVE Paint, Stripes color of your choice.
RAMP 4ft 7 inch high. Full Rubber. Extra heavy duty spring lift.
FLOOR Super strong floor with 40mm thick hardwood, Rubber covers entire length of float.
CHEST RAILS Curved / Adjustable / Fully removeable
REMOVABLE Head Divider, Shoulder Devider, Centre Divider , Breeching doors and chest rails.
TYRES Five new light truck tyres fitted on sunraysia wheel rims.
SIDE WINDOWS Rolled formed sliding windows for extra ventilation and comfort in warmer conditions.
QUARTER WINDOWS in side access doors.
BREECHING DOORS removable / padded.
RUG RACK store rugs / coats etc.
PADDINGS to sides, centre divider, chest rails and breeching doors.
LED COMBINATION LIGHTING Plug to suit your car.
FLUSH MOUNTED DOOR HANDLES also side tie points.
SINGLE LIFT DOOR (rear) struts make for easy operation. Door can be used in all weather conditions.
CHECKER PLATE fully sealed and wrapped around entire lower section , A frame and mudguards included.
WATER CARRIER 20 litre mounted on side. (includes tap)
INTERIOR LIGHTS two with built in switch to horse and tackbox.
POP UP VENTS two vents to hood for maximum air flow.
FEED BUCKETS two buckets with mounted brackets.
COLOUR predominantly white, your choice stripes, scrolls and pin striping.

 FREE FOUR MONTH SERVICE
